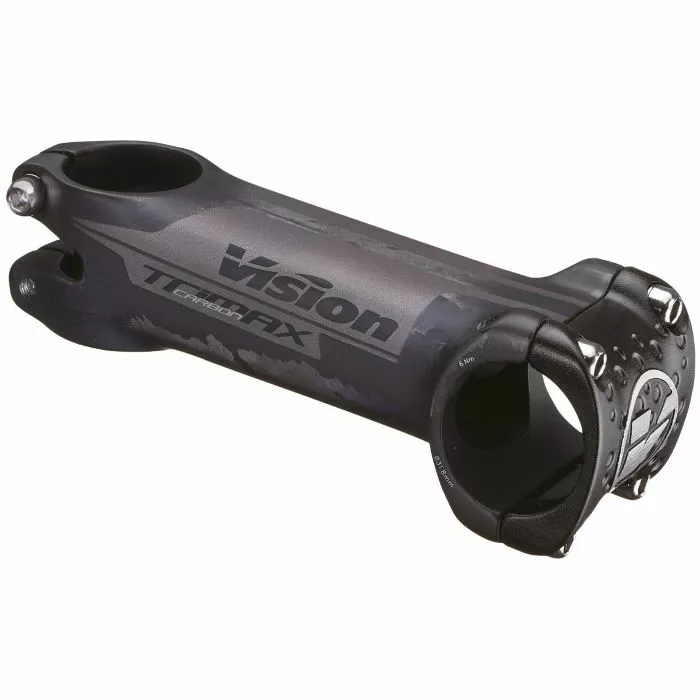

Vision TriMax Carbon Road Stem

The Vision TriMax Carbon Road Stem features a 3D forged and CNC-machined aluminium build, a unidirectional carbon finish and a fine blasted anodised alloy faceplate making it well-equipped for the demands of road cycling.

Specifically designed for road bikes, this high-quality stem is engineered to deliver a strong and secure connection between your handlebar and your fork’s steerer tube. Its 3D forged and CNC-machined aluminium construction means that any excess material has been shaved off to keep weight to a minimum, while still offering maximum durability. Vision has also equipped this model with a unidirectional (UD) carbon finish, which uses a carbon skin that’s applied through a CSI process for reinforcing the strength of the aluminium centre and ensuring an exceptionally low weight from the carbon. Coming complete with a four-bolt alloy faceplate that’s fine-blasted and anodised, this road stem provides a dependable interface for holding your ride together, mile after mile.

Manufacturer’s Part Numbers:

670-0338016030 80mm
670-0338017030 90mm
670-0338018030 100mm
670-0338019030 110mm
670-0338020030 120mm
670-0338021030 130mm

Topfunktioner:

• Material: 3D forged and CNC machined Aluminium
• Finish: Unidirectional (UD) Carbon (UD Carbon skin applied through CSI process)
• Faceplate: Fine blasted anodised Alloy
• Hardware: Chromoly (CrMo) Steel
• Use: Road
• Handlebar Clamp Diameter: 31.8mm
• Steerer: 1 1/8″
• Fork Clamp Stack Height: 35mm
• Angle: -6 degrees
• Weight: 157g (100mm option)
